The best partner : CRB & Portable Extractor
Release time:2026.10.09The best partner : CRB & Portable Extractor
In commercial carpet cleaning industry , deeply clean large area commercial carpet, the professional process as follows :
* Dust-absorb with powerful vacuum cleaners to clean all dust and deep dust from surface to inside of carpet totally without left of dust on surface and inside of carprt;
* Pre-spray : prespray chemical with sprayer to spray professional chemical to the surface and inside of carpet;
* CRB cleaning : using CRB ( counter rotating brushes carpet cleaners ) to clean or tile the carpet fiber from front side to dark side; this CRB can take the dirty dust out off the fiber of carpet or take the dirty or dust out of the bottom of carpet; all dirty or dust out of carpet;
* PEP absorbing : using PEP ( portable extractor package with wands ) to absorb the wet dirty water out of the carpet from surface to inside of carpet ; this portable extractor can absorbe water from cuarpet to make carpet dry fast ; more than 95% wet water get out of carpet to keep carpet dry deeply within 30 minutes ;
* CRB clean again for dry carpet to make carpet look all new or dry completely;
* Carpet blower : using carpet blower to make carpet good and new ;
In this professional process of commercial carpet cleaning, CRB and Portable extractor are the best partners to clean and keep carpet new and nice .
Here our factory is able to explain the working principle and how to work together between CRB and portable extractor in commercial carpet clenaing industry :
Technical Explanation | |
CRB vs Portable Extractor and Their Combined Use for Deep Cleaning of Large Commercial Broadloom Carpet | |
1 | The technical core of deep cleaning large commercial broadloom carpet lies in the division of labor and synergy between mechanical agitation and solution extraction. |
2 | The CRB (Counter-Rotating Brushes) machine is responsible for "dislodging" soils from deep within the fibers, while the Portable Extractor is responsible for "capturing" and "removing" the dislodged soils and residual chemicals. Together, they form the gold standard for low-moisture, deep commercial cleaning. |

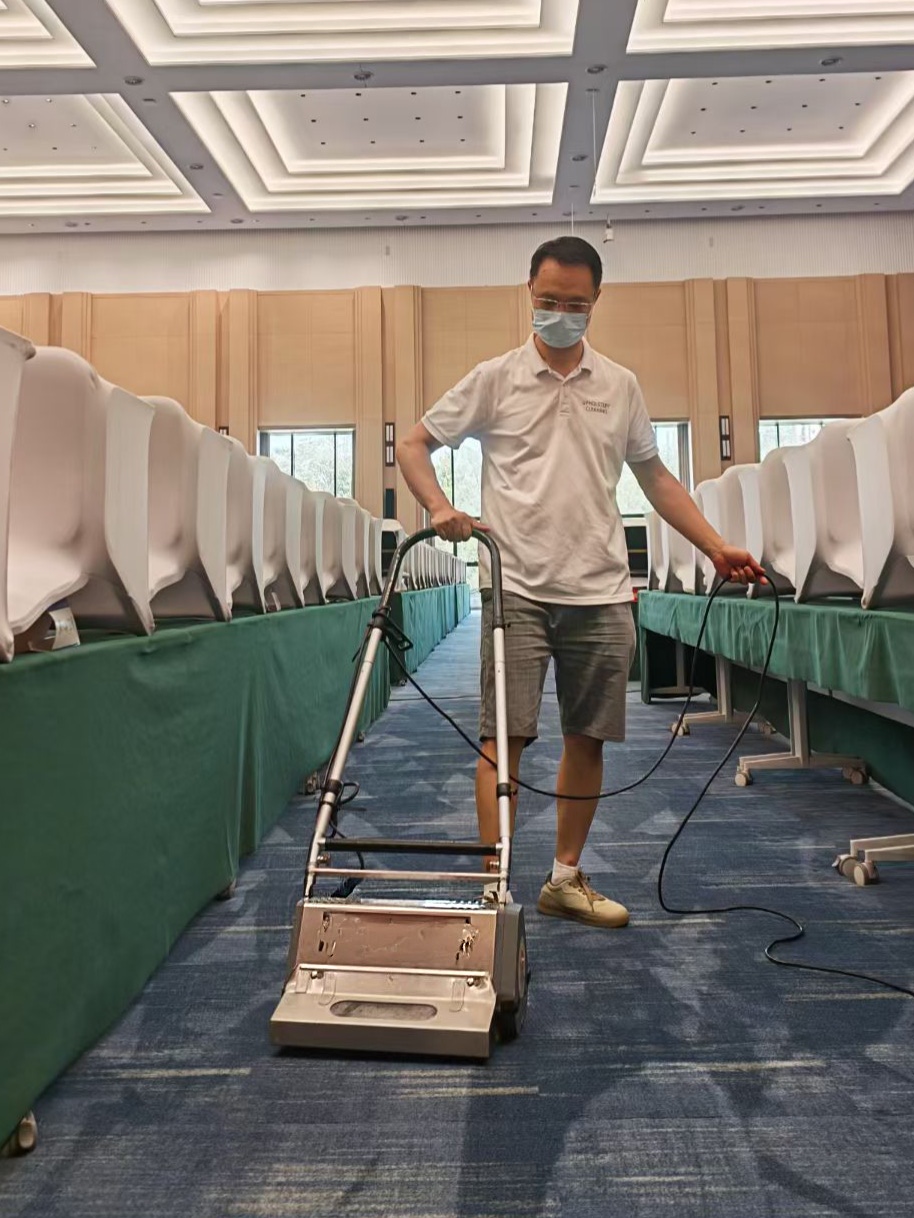

CRB (Counter-Rotating Brushes) Carpet Cleaner
Working Principle:
1 | The mechanical core of a CRB machine is a pair of parallel, closely spaced cylindrical brush rollers that rotate in opposite directions. This counter-rotation design is not simply "double scrubbing" — it embodies a sophisticated mechanical and cleaning logic: |
2 | Counter-Rotational Dislodging and "Grooming" Effect: When the bristles of the two oppositely rotating rollers contact the carpet pile, they create an inward "combing" or "pinching" action. This lifts the carpet fibers from the base rather than, as with traditional single-rotation brushes, driving soil deeper into the fiber. This is critical for removing sand, grit, and caked-on soil lodged deep at the base of the fibers. |
3 | Prevention of Carpet Distortion and Tracking: The opposing rotational forces cancel each other out, giving the machine exceptional straight-line stability during operation. It will not pull to one side due to unidirectional torque, which significantly reduces operator fatigue during large-area work. |
4 | Low-Moisture Design: Many CRB machines themselves feature low-moisture pre-spray capability, or serve as standalone dry/wet agitation equipment. The goal is not to "flood" the carpet with water, but to use high-frequency mechanical beating and grooming to first break the adhesion between soil and fiber. |
Portable Extractor Package
Working Principle:
1 | The Portable Extractor is a complete solution delivery and vacuum recovery system. Its physical mechanism is built on a closed loop of "dissolve – suspend – extract" |
2 | Pressurized Injection: The machine uses a pump to pressurize cleaning solution (hot or cold water) and injects it into the carpet fibers through a jet or spray nozzle. When used in professional conjunction with a CRB, this step is typically set to low flow, used only for rinsing or neutralizing residual chemicals. |
3 | Vacuum Extraction: The core component is the vacuum motor. It creates high negative pressure inside the recovery tank, generating high-velocity airflow at the carpet surface through the extraction wand. As the soil-laden liquid passes over the extraction slot, it is torn apart, entrained by the powerful airflow, and deposited into the recovery tank. Professional-grade extractors emphasize the balance between airflow and water lift to ensure maximum water recovery in a single pass. |

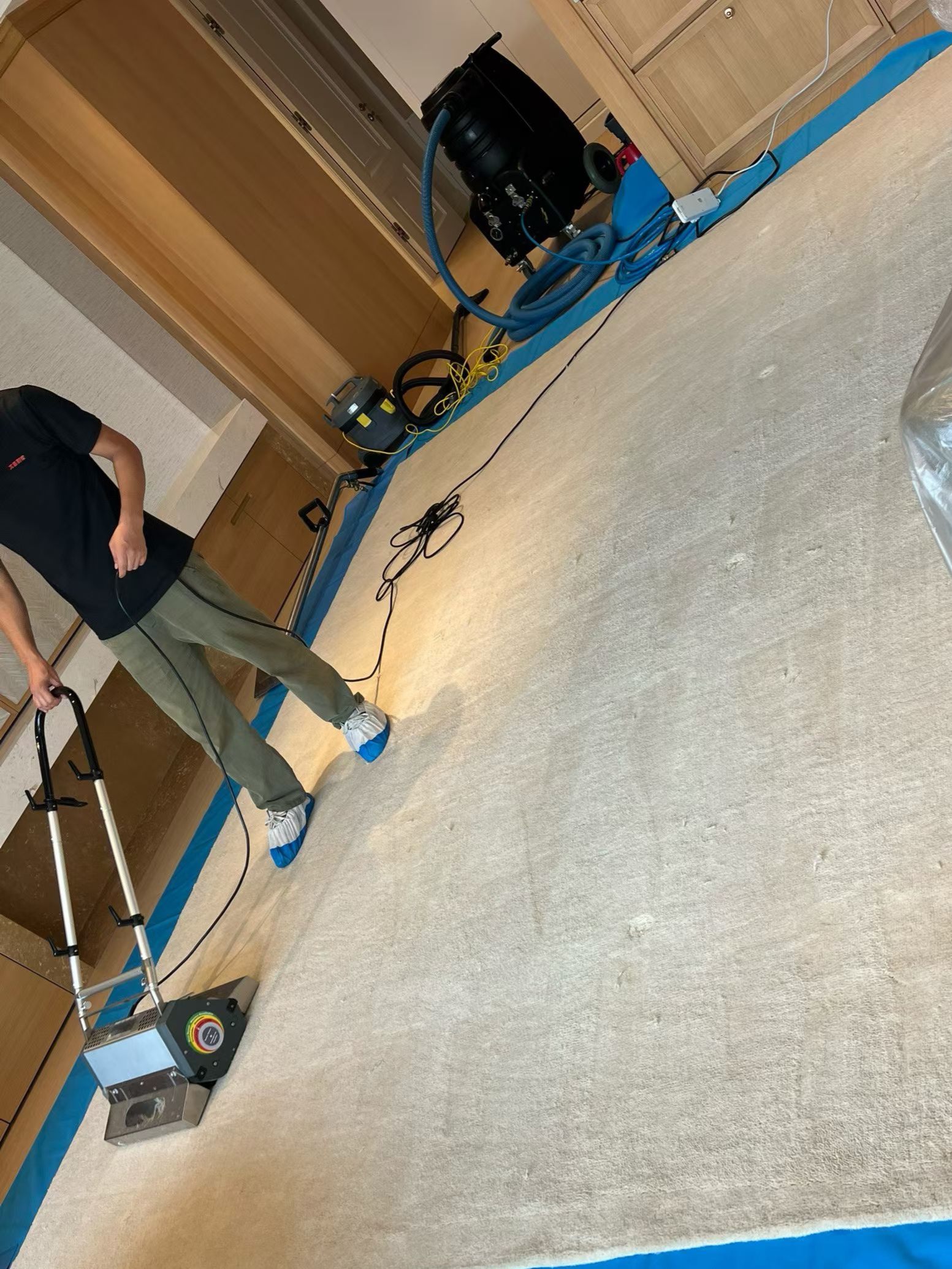

CRB and Portable extractor match to clean carpet together :
* Synergistic Operation: Professional Deep Cleaning of Large Commercial Broadloom Carpet: Combining a CRB with an extractor is intended to solve the problem that extraction alone ( direct spray-and-vacuum with an extractor) cannot thoroughly remove "deep-set" bonded soil. For large commercial broadloom installations (e.g., office buildings, hotel corridors), the recommended deep cleaning process is as follows:
* Dry Preparation and Pre-Spray
First, perform thorough dry vacuuming to remove loose dust and dry particulate. Then, for heavily soiled areas (e.g., entries, walkways), pre-spray a diluted professional low-foam cleaning agent. The key is to allow a 5–10 minute dwell time for the chemical to fully dissolve oils and soil, but never allow the solution to dry on the carpet.
2. CRB Mechanical Agitation (Core Step)
Operate the CRB machine over the pre-sprayed area in overlapping passes. The counter-rotating brushes serve to:
Fully open up the carpet fibers, "combing" sand and deep soil from the base of the fibers to the surface.
Mechanically blend the cleaning agent and soil thoroughly into a suspension.
Note: At this stage, the CRB does not extract the wastewater; it merely "tills" and "mixes."
3. Portable Extractor Rinse and Extraction
Immediately following the CRB (must be before the carpet dries), use the portable extractor for water rinse extraction.
Set the extractor's solution feed to clean water or a solution containing a neutralizer/acid rinse.
Pull the extraction wand in overlapping paths (e.g., 50% overlap) at a slow pace. The goal is not to soak the carpet with water, but to use the "tearing" action of the vacuum to thoroughly remove the soil suspension dislodged by the CRB and the residual chemicals.
On the final pass, perform a dry pass — shut off the spray and rely solely on strong vacuum to remove as much water as possible, minimizing dry time.
4. Drying and Post-Treatment
Finally, use high-velocity air movers for forced drying. Because the CRB and extractor combination achieves "low water, high extraction," the carpet typically returns to service within 1–2 hours.
Professional Tip: For large commercial broadloom carpet ( polypropylene, nylon), always follow the equipment manufacturer's guidance regarding bristle stiffness and denier. Bristles that are too stiff on a CRB may cause pilling or excessive wear on synthetic fibers. Carpet manufacturers ( Tarkett ) typically expressly prohibit the use of traditional single-disc rotary brushes for soft-surface cleaning, as they can cause fiber heat damage and matting, and recommend only counter-rotating brushes (CRB).
