Brief-Introductions: Pellet Stoves & Pellet Boilers & Pellet Hot-Air Furnaces
Release time:2026.10.21Biomass wood pellet heating equipment
Biomass wood pellet heating machines are very important and welcome traditional heating machines in some different industries , according to the working or using site, these machines can be named as follows :
* Biomass wood pellet stoves
* Biomass wood pellet boilerd
* Biomass wood pellet hot air furnaces
Concerning how this different kinds of heating machines work and where to use these machines in different industries , our engineers make some brief introduction about them .
The following is a professional English introduction to the working principles and application scenarios of the three types of biomass wood pellet equipment.

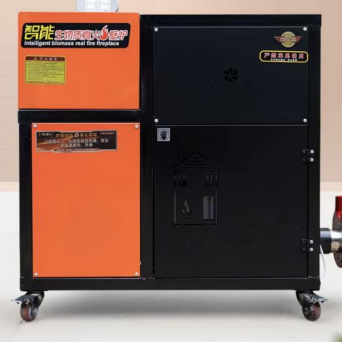

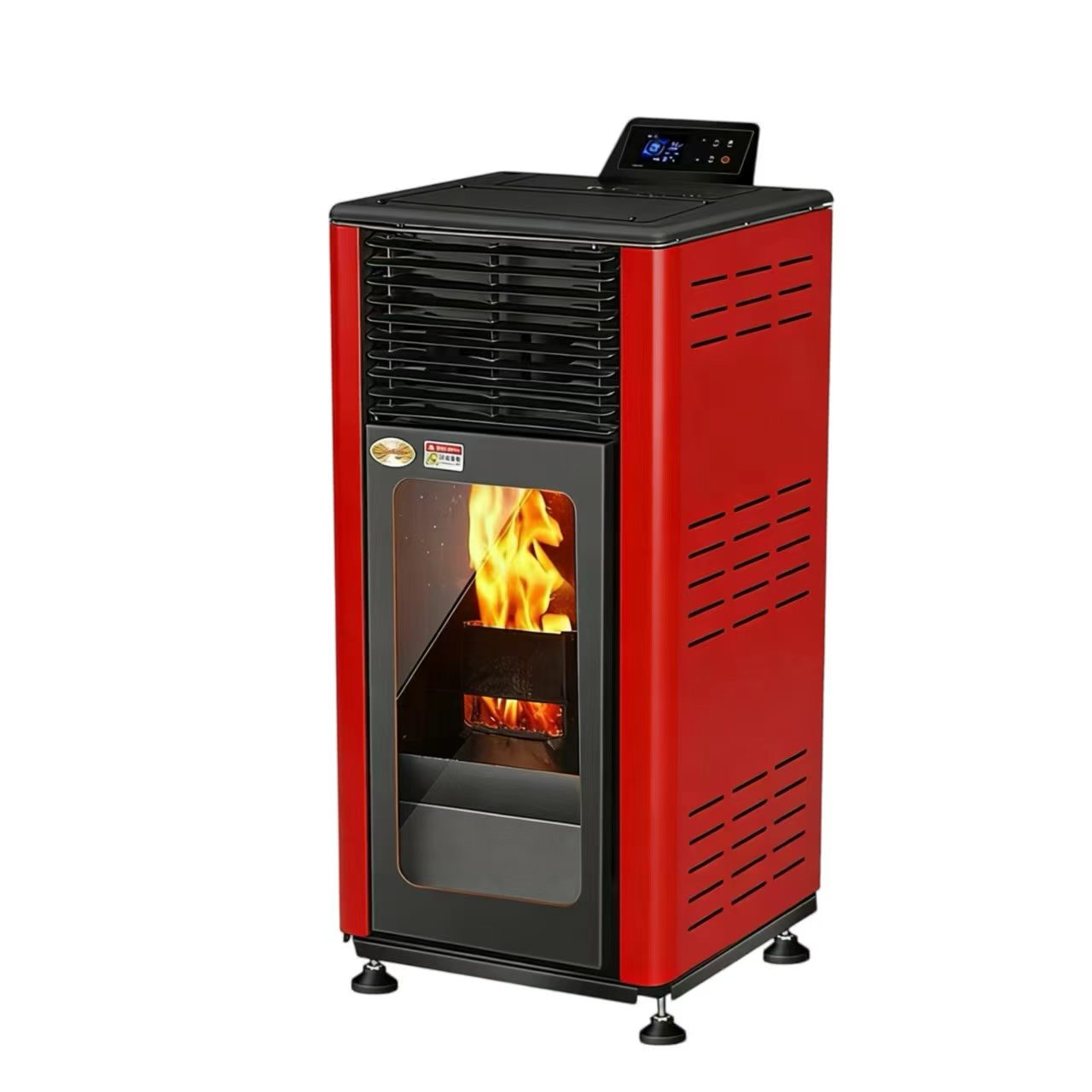

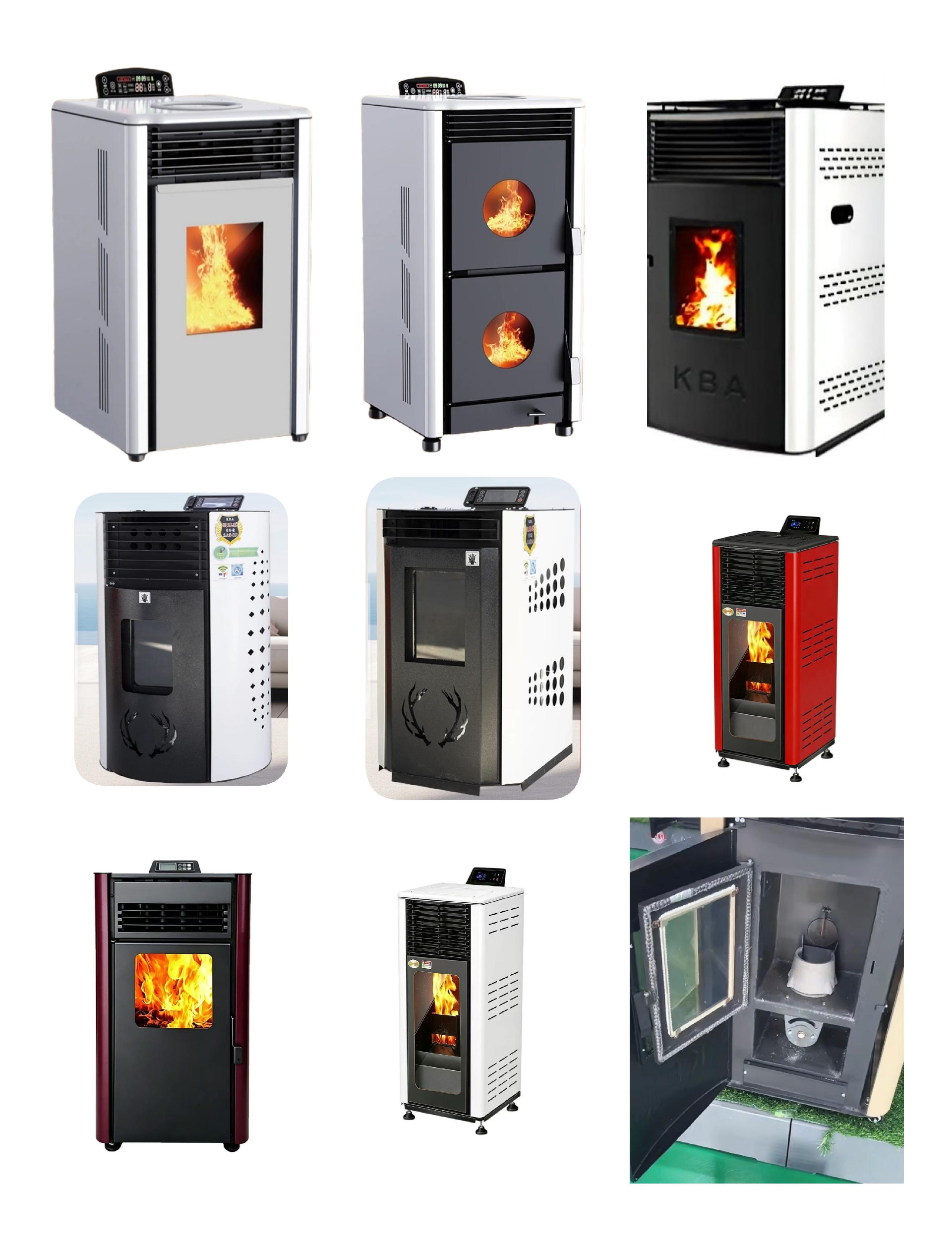

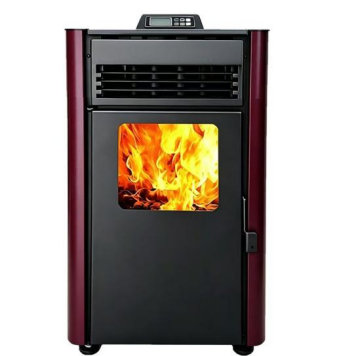

1. Biomass Wood Pellet Stoves
OEM & ODM Biomass wood pellet stoves can be designed and produced according to your requirements in different countries ! | ||
Working Principle | Pellet stoves are room-scale, automatically fed combustion appliances. Wood pellets are delivered from an integrated hopper to a burn pot via double-designed auger feeder , where ignition and combustion are controlled electronically. Modern units modulate fuel and air supply to match heat demand, achieving high combustion efficiency and low emissions compared to manual batch-fed stoves . Most models are direct-vented and do not require a full masonry chimney . |
|
Application Scenarios | These stoves are designed primarily for localized space heating in residential settings, such as living rooms or individual rooms, rather than whole-house central heating . They serve as a point-source heat emitter and are suitable for supplementary heating or zoned comfort where ductwork is absent. | |

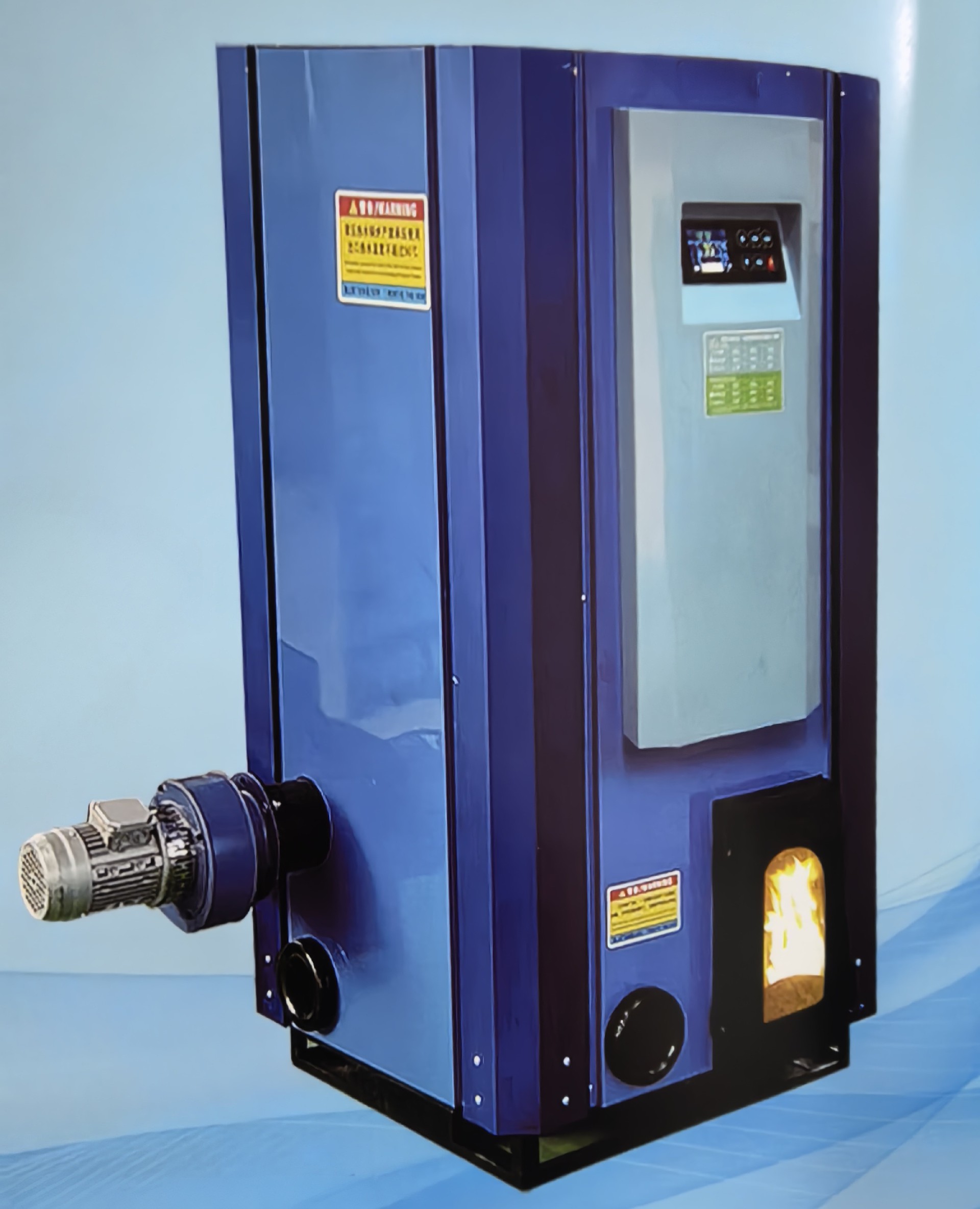

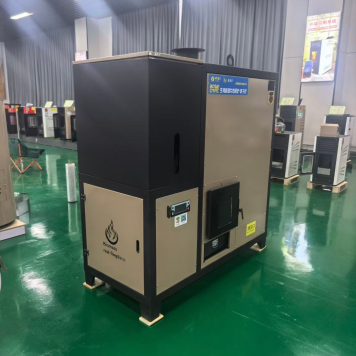

2. Biomass Wood Pellet Boilers
Working Principle | Pellet boilers are automatic central heating units that transfer combustion heat to high temperature hot water via a heat exchanger (boiler tubes or plates). The outputing hot water temperature can reach 65℃ to 85℃to meet the central hot water for radiators system. Fuel is fed automatically from a storage hopper or external silo, and advanced models can modulate output across a wide range (e.g., 30–100% of nominal capacity). High-efficiency condensing variants recover latent heat from flue gases to further boost performance . |
|
Application Scenarios | These boilers are intended for hydronic central heating of entire buildings. They are typically integrated with existing radiator or underfloor heating circuits and can also supply domestic hot water. Capacities range from small residential units (around 8–10 kW) to larger commercial systems (up to several hundred kW), making them suitable for single-family homes, housing complexes, and light commercial facilities . |

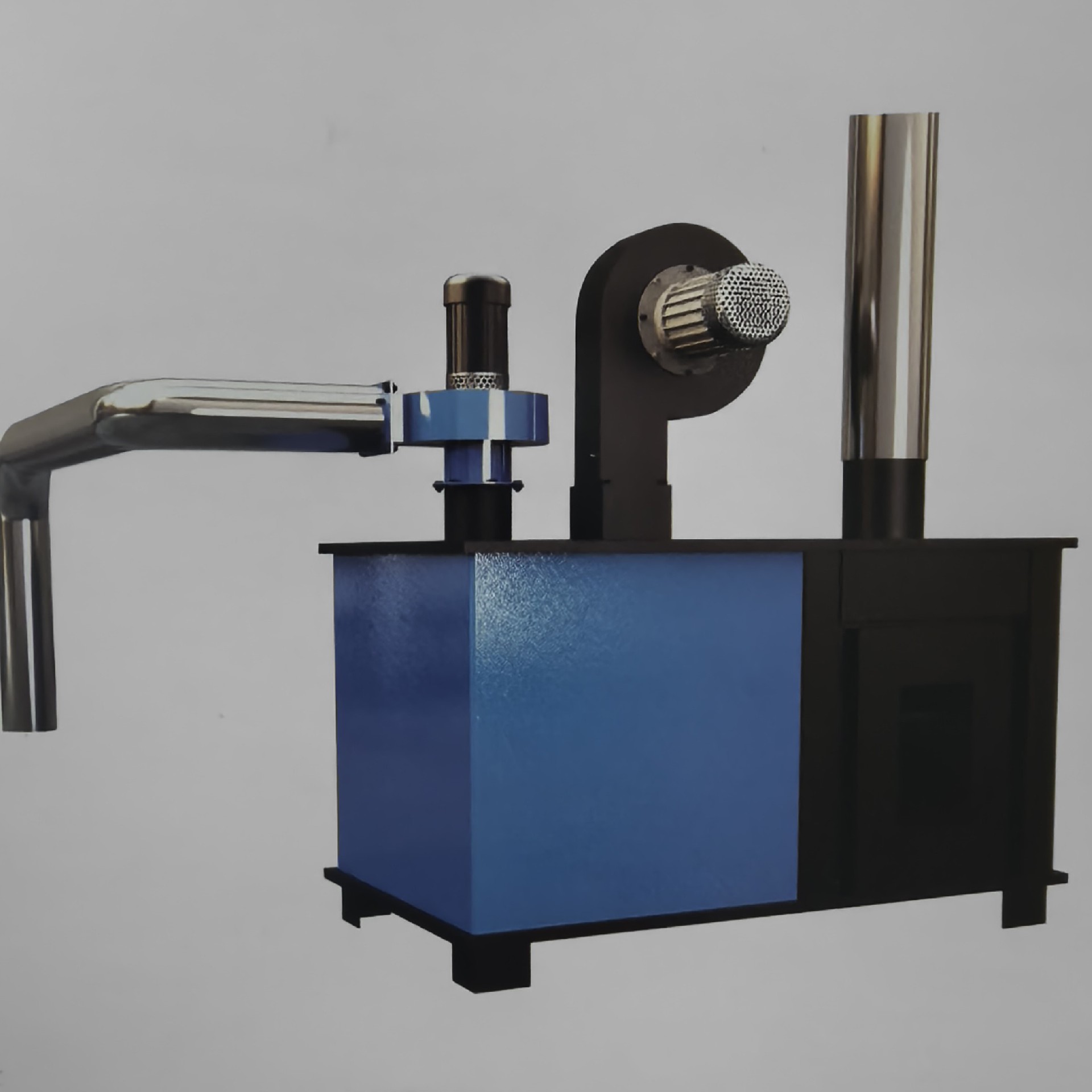

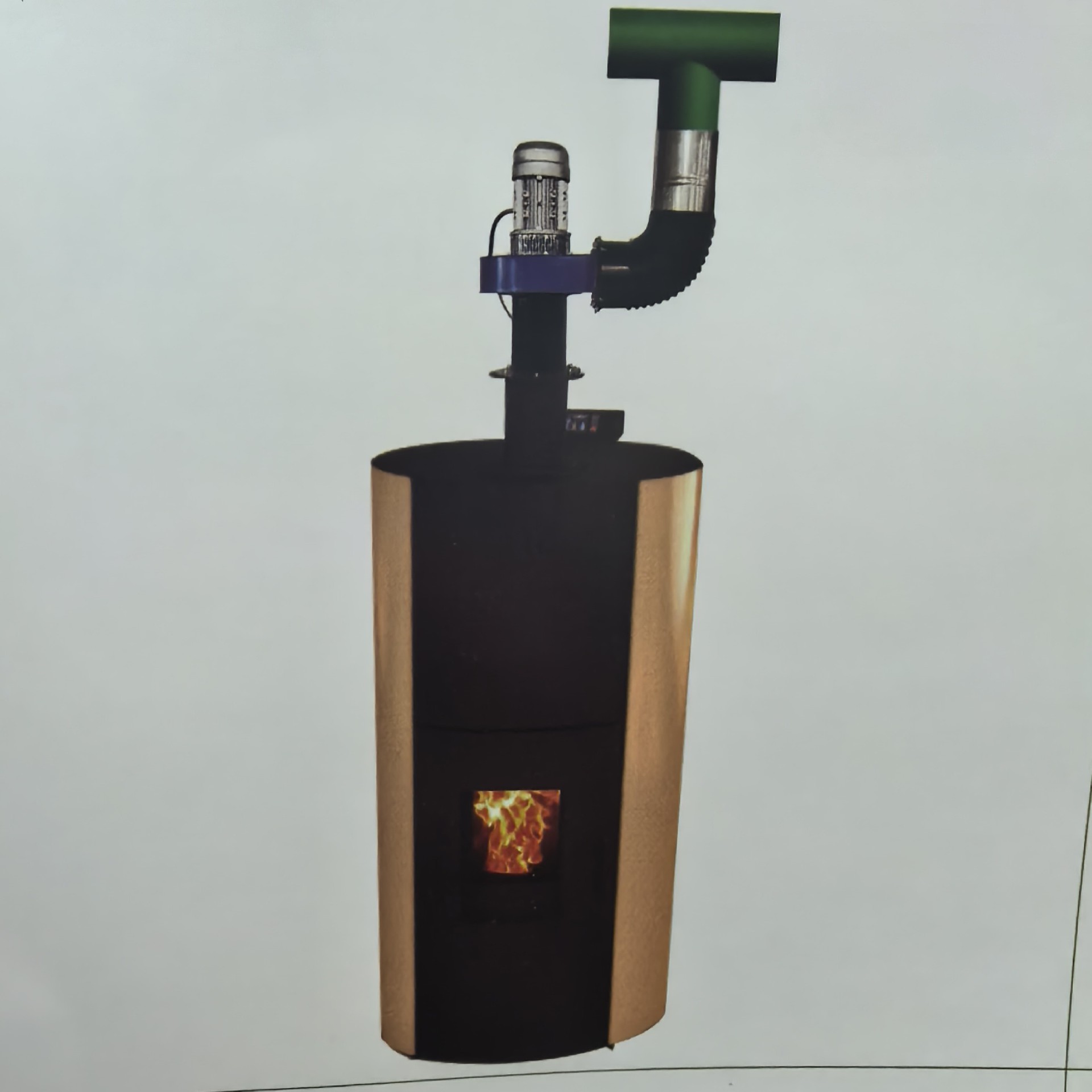

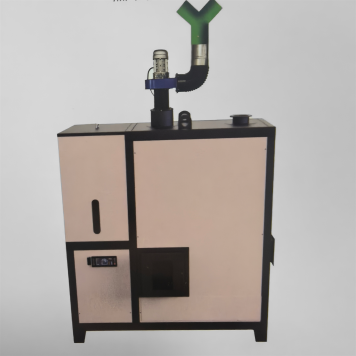

3. Biomass Wood Pellet Hot Air Furnaces
Working Principle | Hot air furnaces combust pellets in a dedicated chamber, and the resulting flue gases pass through a heat exchanger where they transfer heat to ambient air drawn in by a blower. The heated clean air is then distributed via ductwork. This design ensures that combustion gases do not mix with the delivered air, maintaining indoor air quality . The hot air output flow speed and vaccum is the key important technologies for the special requirements from customers, such as : agriculture and inddor workshop . |
|
Application Scenarios: | These furnaces are optimized for forced-air space heating and process drying. In residential or commercial buildings, they connect to duct systems to provide central warm air. In agricultural and industrial contexts, they supply large volumes of hot air for drying crops, timber, or other materials, as well as for heating large enclosures such as greenhouses or workshops . |
Biomass wood pellet heating machines are the traditional eco products in heating industry, through more than 20 years testing in international market to prove that pellet stoves & pellet boilers & pellet hot air furnaces will be the long-time choice for the current customers and old design upgrade for their winter heating requirements.
