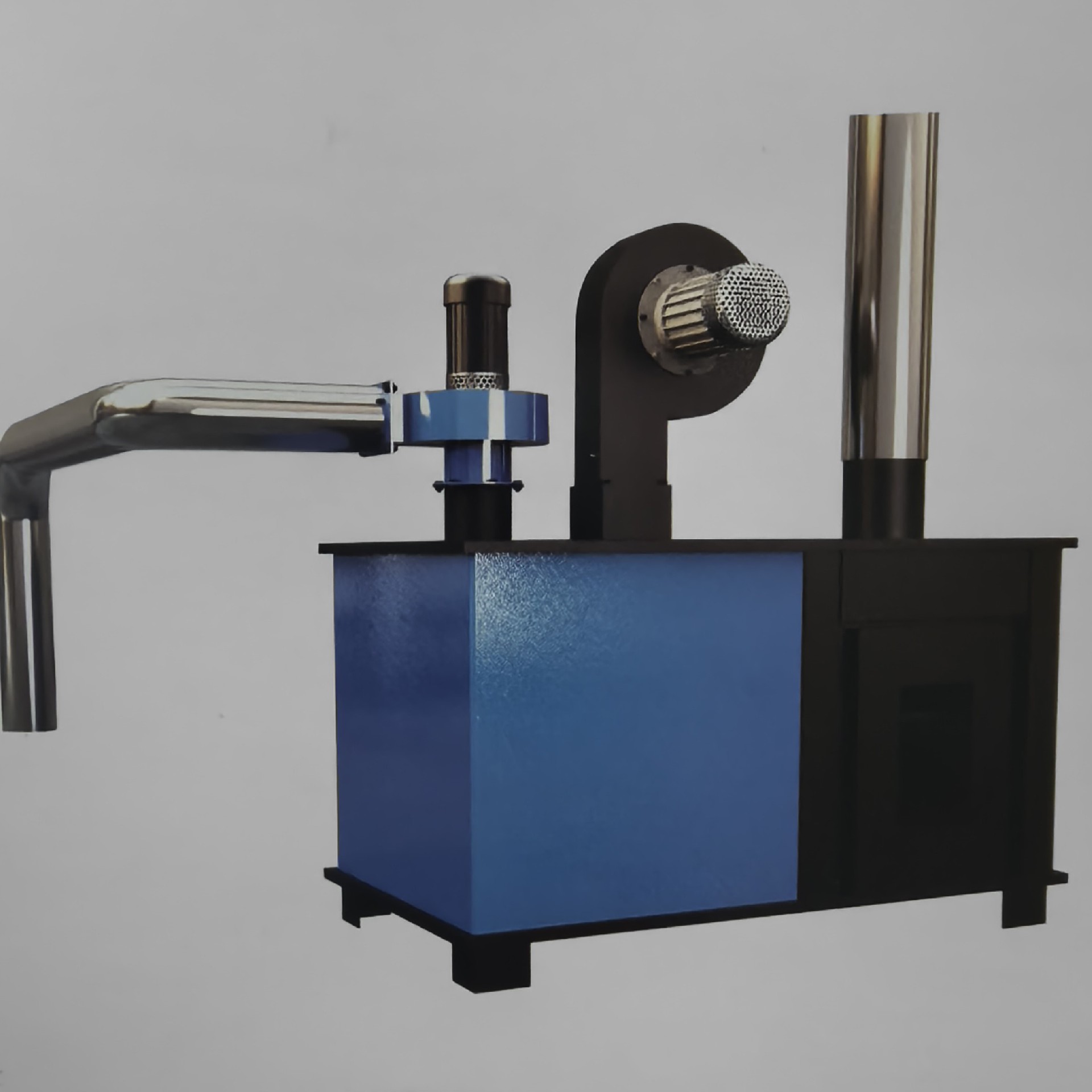

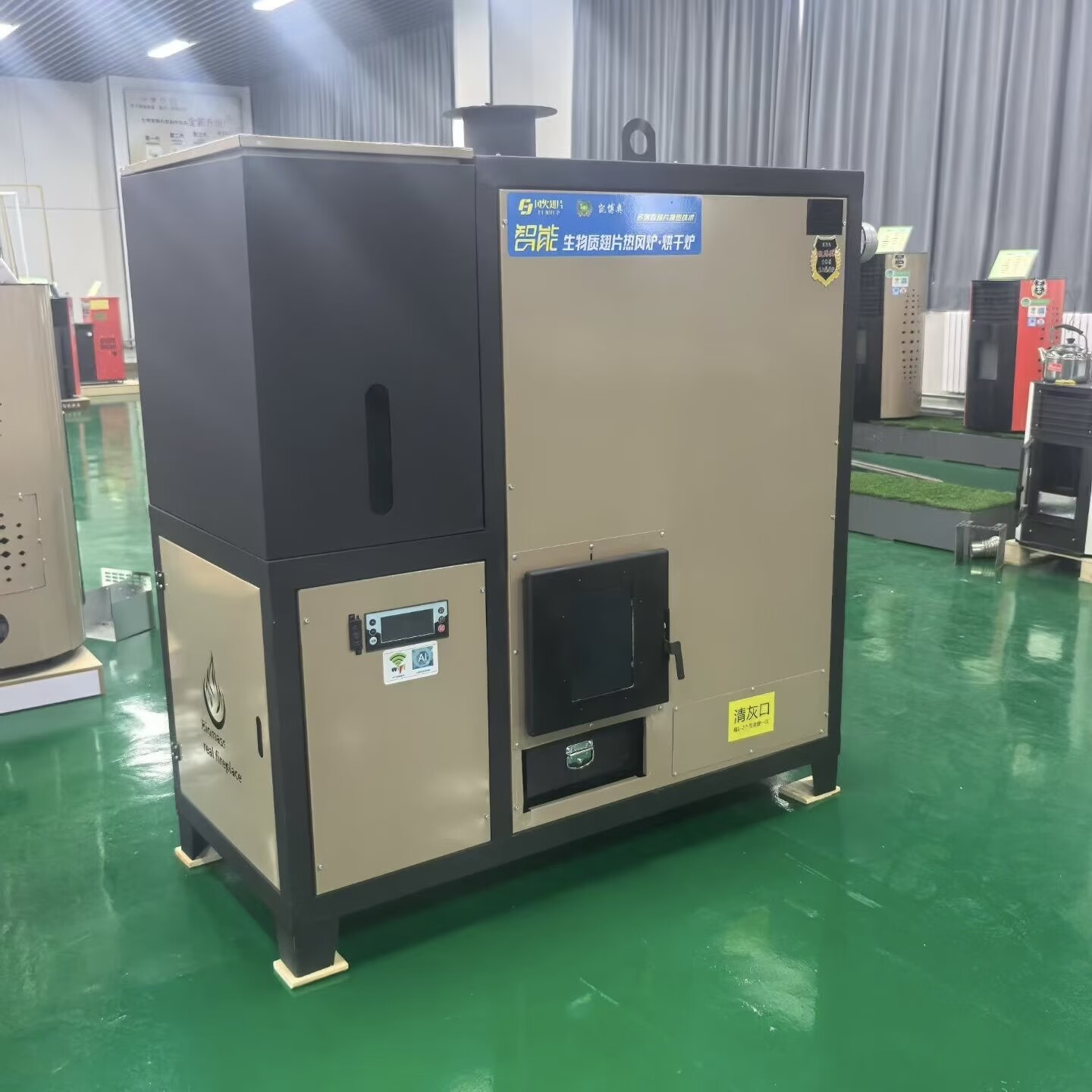

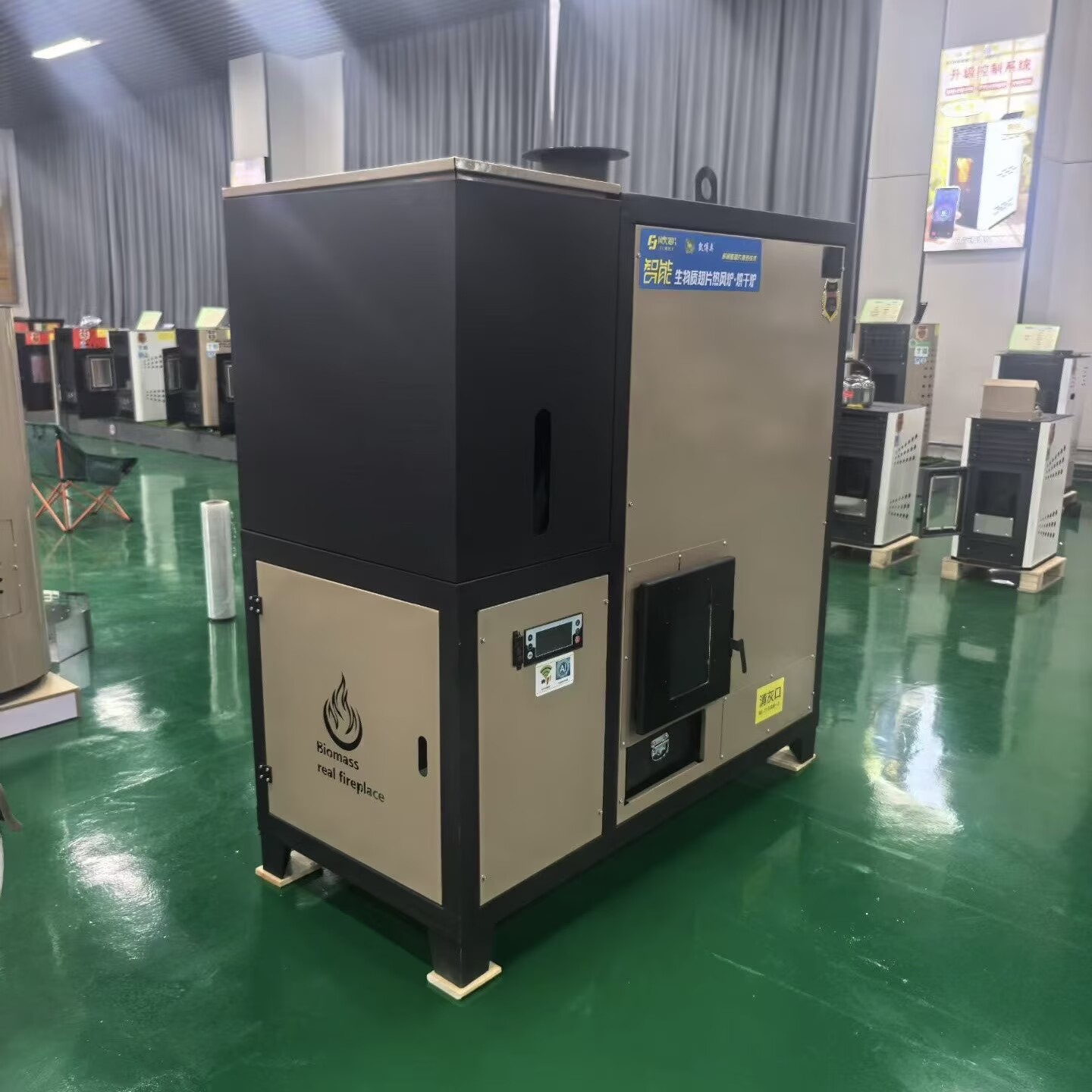

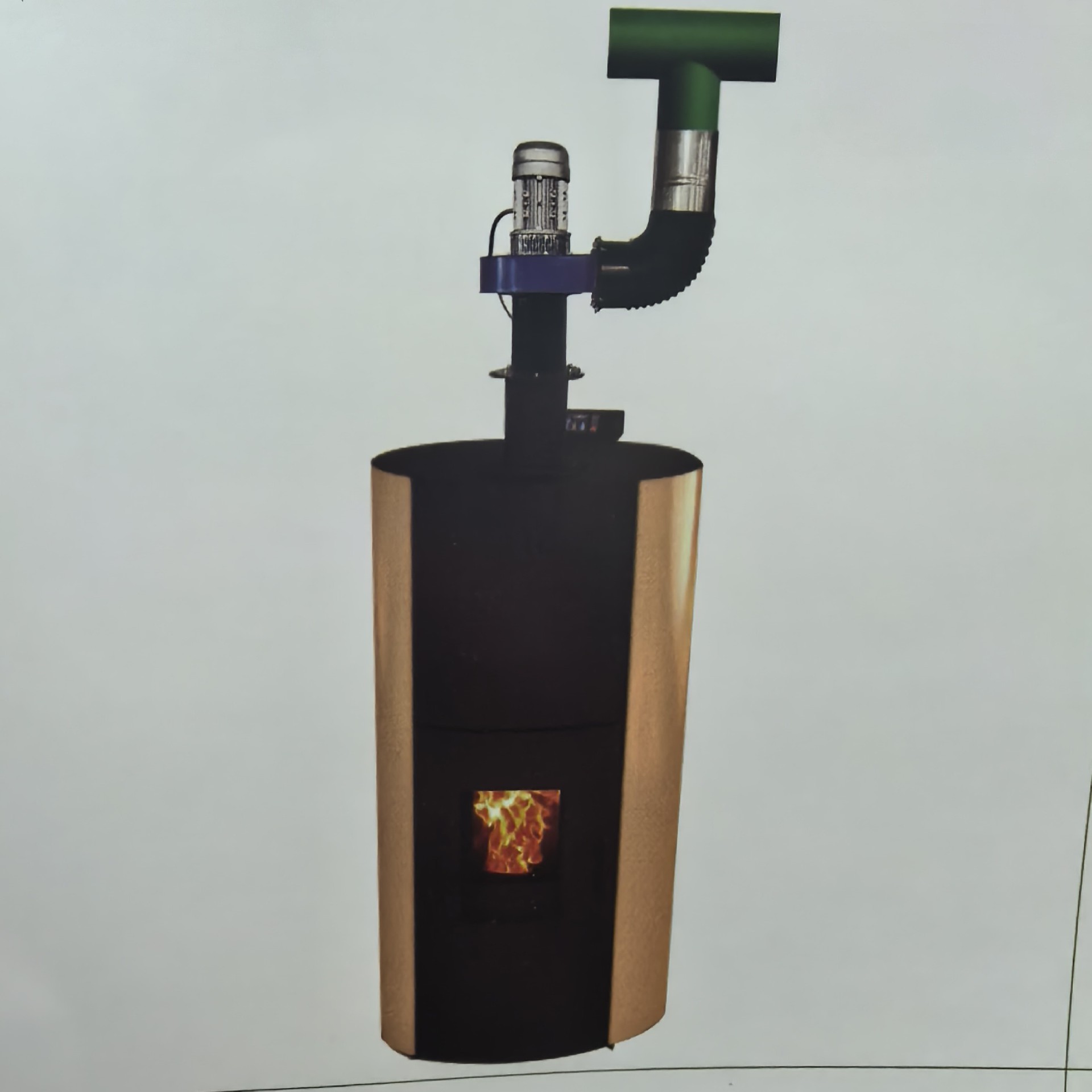

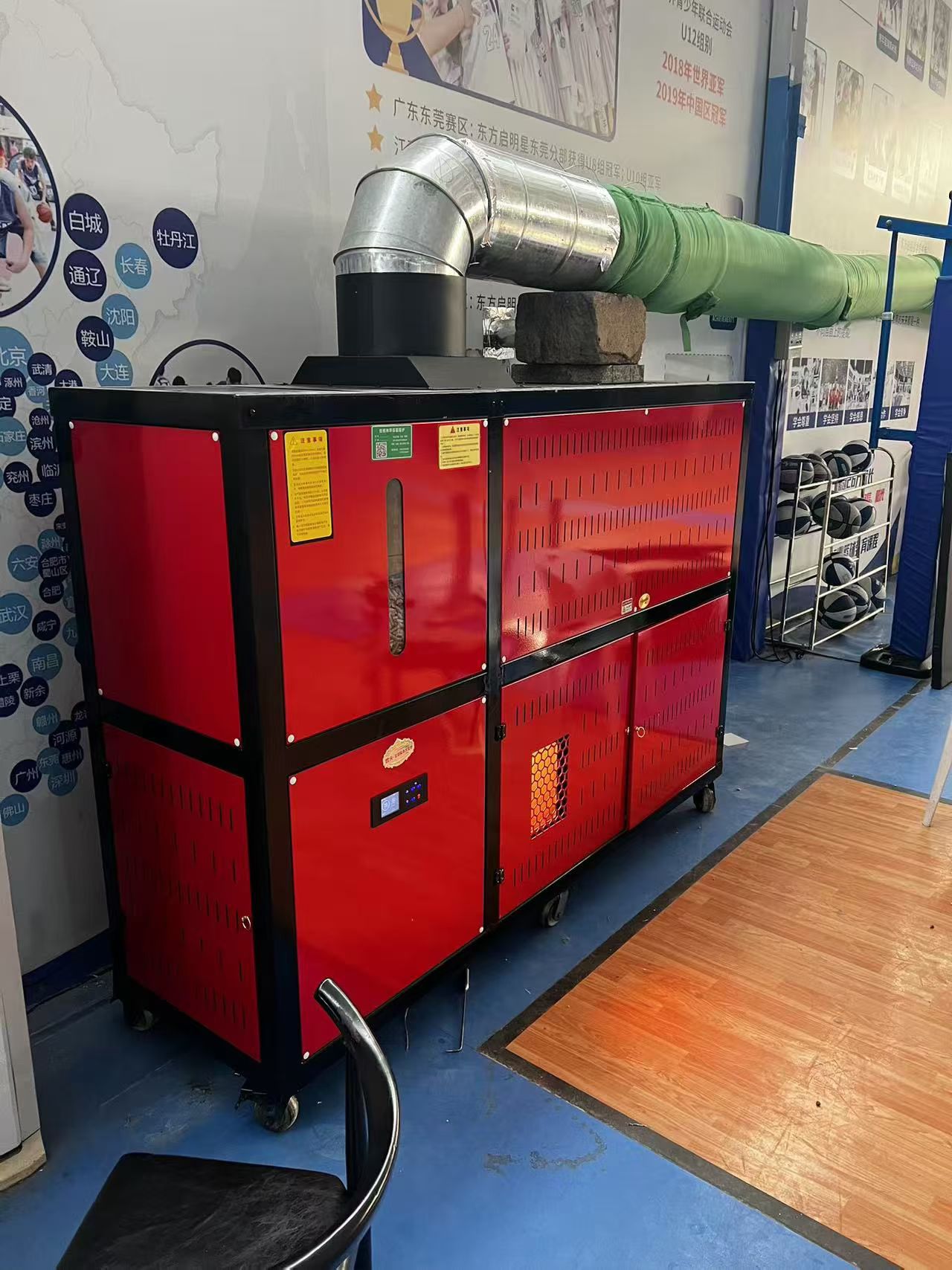

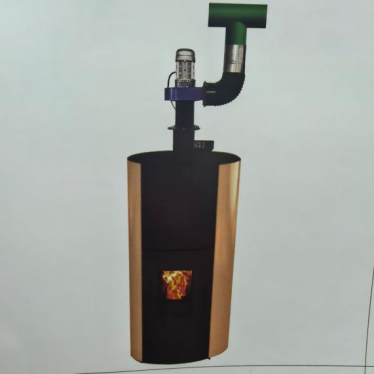

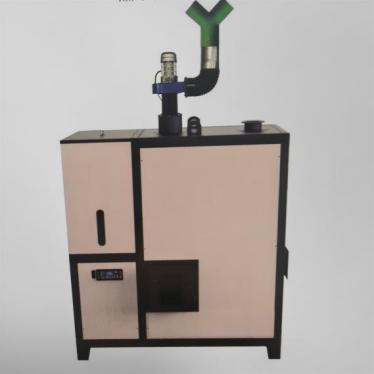

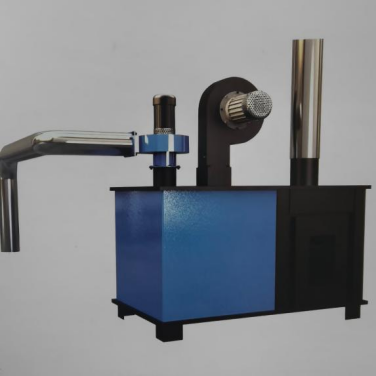

Biomass Pellet Hot Air Furnace

A Technical & Application Overview

1. Product Definition A Biomass Pellet Hot Air Furnace is an automated combustion system designed to convert the chemical energy stored in standardized biomass pellets (typically made from wood, agricultural residues, or dedicated energy crops) into clean, hot air for thermal applications. It represents a sustainable, carbon-neutral, and cost-effective alternative to fossil fuel-based heating systems.

2. Core Working Principle The operation follows a highly efficient and automated process: ·

3. Fuel Feeding & Storage: Pellets are automatically conveyed from an integrated hopper or an external storage silo to the combustion chamber using an auger (screw conveyor). This ensures continuous, hands-off operation for extended periods.

4. Automated Combustion: Pellets are fed into a dedicated burn pot or grate. An ignition element (often automatic) ignites the fuel. A controlled supply of primary combustion air, managed by a fan, ensures optimal burning with high temperatures and low emissions.

5. Heat Exchange: The hot flue gases produced pass through a multi-pass heat exchanger (typically a series of steel or cast-iron tubes or plates). A separate, clean air stream from the space to be heated is forced across this hot exchanger by a powerful blower fan. The air is heated without contacting the combustion gases, ensuring cleanliness and safety.

6. Hot Air Distribution: The now-hot air (typically ranging from 40°C to 120°C+, depending on the model and setting) is distributed through insulated ductwork to the target areas. This is a Forced Air System, allowing for precise directional heating over long distances.

7. Ash Management: Modern furnaces feature efficient self-cleaning mechanisms (like ash screws or shaking grates) that deposit residual ash (typically less than 1% of fuel volume) into a removable ash drawer, minimizing maintenance. · Intelligent Control: The entire process is governed by a digital controller, managing fuel feed rate, combustion air, blower speed, and safety parameters (including temperature sensors and safety thermostats) for optimal efficiency and safety.

8. Key Technical Advantages · High Efficiency: Achieves combustion efficiencies of 85%-95%+. · Low Emissions: Complete combustion and automated controls result in minimal particulate matter (PM) and CO emissions, complying with strict standards (e.g., EPA, EN). · Automation: Comparable convenience to gas or oil systems, with automatic ignition, modulation, and shutdown. · Carbon Neutrality: The CO₂ released during combustion is offset by the CO₂ absorbed by the biomass during its growth. · Fuel Security: Utilizes locally sourced, renewable fuel, reducing dependence on fossil fuel price volatility.

9. Primary Application Scenarios This technology is ideal for any application requiring large volumes of clean, dry heat: · Agricultural Sector: · Crop Drying: The premier application. Used for efficient, gentle drying of grains (corn, wheat, barley), oilseeds, herbs, and biomass fuels themselves (e.g., wood chip drying). Indirect heating prevents contamination.

10. Greenhouse Heating: Provides uniform, stable, and low-humidity heat, promoting plant health and reducing disease risk.

11. Livestock Building Heating: Ensures animal welfare in barns, poultry houses, and farrowing units during winter. · Industrial & Commercial Sector:

12. Workshop & Factory Heating: Cost-effective space heating for manufacturing plants, warehouses, and repair shops.

13. Process Heat: Supplying hot air for industrial processes like drying paints, pre-heating materials, or food processing.

14. Commercial Building Heating: Heating for large spaces like gyms, workshops, and agricultural storage facilities.

15. Community & Institutional Buildings: Heating for schools, community centers, or swimming pools.

16. Critical Considerations for Buyers · Heat Output: Rated in kW or BTU/hr. Must be correctly sized for the application's heat demand.

17. Ducting System: Requires professional design and installation of thermally insulated galvanized steel ductwork.

18. Fuel Quality: Requires high-quality, low-ash pellets (e.g., ENplus A1 grade) for reliable, low-maintenance operation.

19. Regulatory Compliance: Must be installed and operated in accordance with local regulations concerning emissions, ventilation, and clearances.
